Low-Code is an interesting instrument. I as soon as measured the productiveness distinction between a Low-Code scaffolding system reminiscent of Magic and a human software program developer, and Magic is arguably a number of billion instances sooner than a human software program developer. Just because it creates wealthy and sophisticated web apps in seconds, as an alternative of months required for a human to do the identical. As well as, Low-Code additionally permits for mere mortals to create wealthy web apps, leading to {that a} human being with some fundamental IT data can create complicated web apps in seconds. The recipe discovered under may most likely be executed in 5 minutes after a few dry runs getting used to the method, so let’s get began and create a wealthy and sophisticated web app, and let’s attempt to do it in 5 minutes. Nevertheless, earlier than we begin, let’s take a look at what we’re going to create.

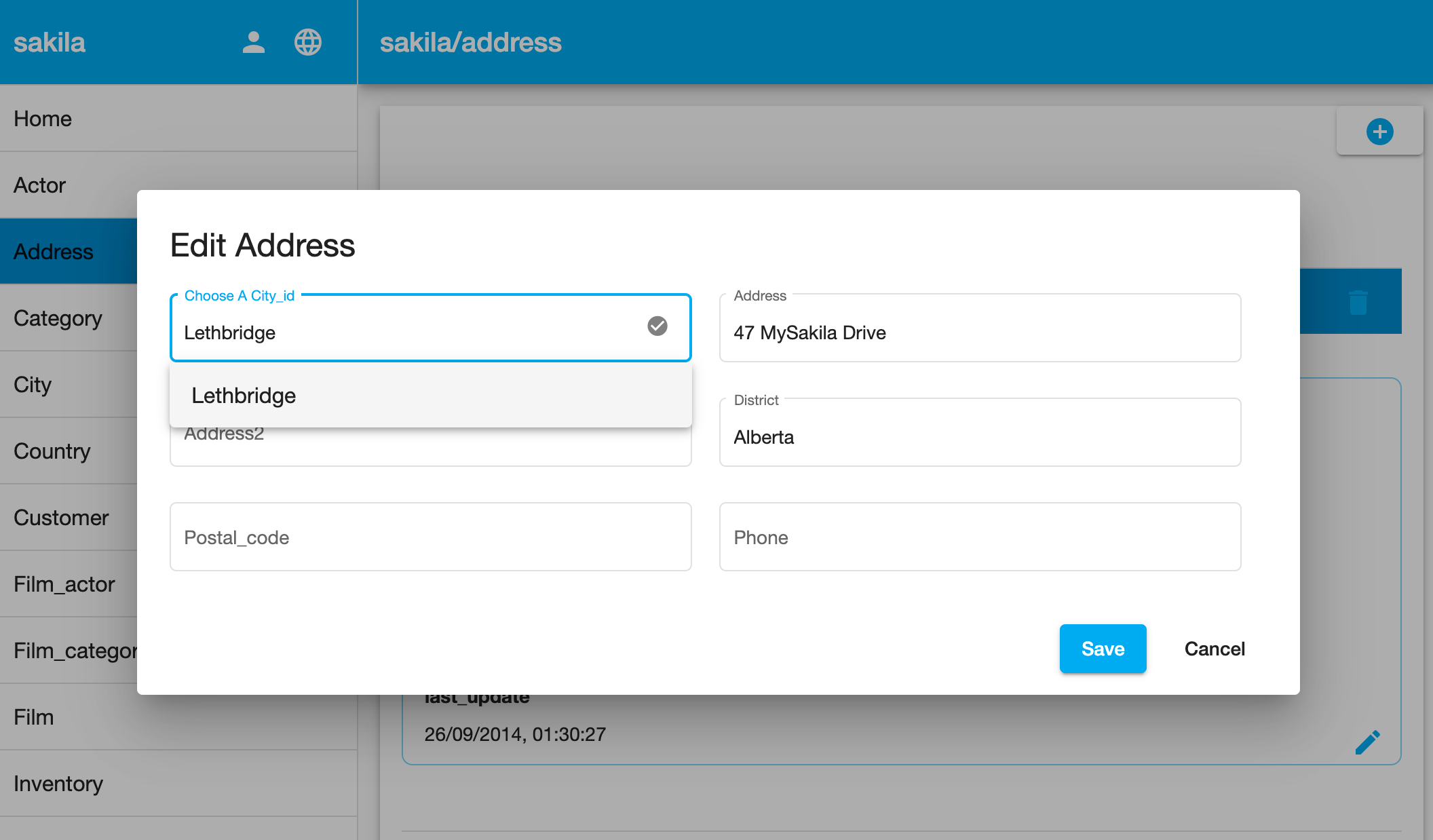

If you wish to check out the app, you may find our Sakila example app here. Login with “admin/admin” and mess around with it as a lot as you please. Then realise the above app was created in actually 2 seconds. Including the necessities to deploy the app and we’re as much as some roughly 5 minutes in whole earlier than you’ve the above app created and put in into manufacturing on a URL of your selecting. So let’s get began. Earlier than we begin, realise the remainder of this recipe was first revealed here, and it’d change over time, since we’re continuously attempting to enhance and simplify the method. Therefore in case you are studying this text some period of time after it was revealed, please go to this link to be sure you are utilizing the newest model of the tutorial.

Magic Deploy

This information helps you deploy Magic unto a VPS or a personal server. The information has been examined with Ubuntu 20.04 (LTS) x64, however would possibly work with different Debian primarily based distributions. You will want a VPS occasion someplace, which you should buy at as an example DigitalOcean. Additionally, you will want a site and level two DNS A information to your server’s IP tackle. Usually these would resemble the next.

  • api.yourdomain.com – The Magic backend
  • magic.yourdomain.com – The Magic frontend/dashboard

Discover – We recommend you do not purchase the most cost effective VPS droplet from DigitalOcean, however relatively select the fundamental droplet that prices you $24 per 30 days. It’s because the most cost effective droplet is just not highly effective sufficient to run two web apps, MySQL, and docker. You would possibly be capable of handle with a $12 droplet, however undoubtedly not the most cost effective droplet. Solely after you’ve created two DNS A information utilizing your area supplier proceed with this information.

Begin

First use SSH to login to your VPS occasion. That is usually achieved utilizing one thing reminiscent of the next on *Nix primarily based methods.

Shell



The IP tackle above must be the IP tackle of your VPS. After you have executed the above, you may be requested on your root password in your VPS occasion. Discover, in case you are utilizing Home windows you should use Putty, and/or when you’re utilizing DigitalOcean you should use their web primarily based terminal interface as a substitute. When you’ve efficiently logged into your VPS occasion you may clone all the magic deploy venture into your VPS server utilizing the next command.

Shell



git clone https://github.com/polterguy/magic.deploy.git

Discover – If the above provides you an error, you would possibly want to put in git utilizing the next command after which run the above command once more afterwards.

Shell



apt set up git

When you’ve efficiently cloned this repository, turn into the magic.deploy folder utilizing the next command.

Shell



cd magic.deploy

Discover – The “docker-compose.yml” file must be manually edited to supply it together with your electronic mail tackle, frontend area, and backend area earlier than you execute the docker-compose command. You are able to do this with the next command.

Shell



nano docker-compose.yml

After which look by way of the file for the next YAML nodes.

  • VIRTUAL_HOST=api.servergardens.com
  • LETSENCRYPT_HOST=api.servergardens.com
  • LETSENCRYPT_EMAIL[email protected]

Along with these YAML nodes.

  • VIRTUAL_HOST=magic.servergardens.com
  • LETSENCRYPT_HOST=magic.servergardens.com
  • LETSENCRYPT_EMAIL[email protected]

In whole there are 6 entries it’s worthwhile to change, and the e-mail tackle must be a legitimate electronic mail tackle you personal. The area must be a sub-domain you personal the place you need to run your Magic set up. If you find yourself executed enhancing the docker-compose.yml file, maintain down the CTRL key and click on X, then sort “Y” when Nano asks you if you wish to save the file after you’ve edited the file, and reserve it with its present filename. If you find yourself executed enhancing the “docker-compose.yml” file, it’s essential to execute the next instructions in your terminal. This installs Docker for you, along with Docker Compose.

Shell



apt set up docker docker-compose

After you’ve put in Docker and Docker Compose, you’ll have to create a digital Docker community. That is mandatory to ensure your containers have a digital community to speak with one another.

Shell



docker community create nginx-proxy

This command will create your Docker proxy community Magic will want to have the ability to join all of the docker photos inside your docker-compose file with one another. When you’ve created the above community, you can begin your docker containers utilizing the next command.

Shell



docker-compose up -d

Discover – The LetsEncrypt container in your “docker-compose.yml” file would possibly want some 5 minutes to configure your SSL certificates because of the internals of how LetsEncrypt works. Should you entry your frontend, and/or your backend, and also you get an error, and/or an SSL error – Simply wait some couple of minutes and attempt to refresh your web page. Solely once you not get an error, you may proceed to configure Magic from its dashboard. To start out this course of nevertheless, you’ll need to entry each your frontend and your backend to provoke the method of retrieving an SSL certificates for each your web apps. Should you area is “yourdomain.com” and also you selected the DNS A information illustrated at first of this text, you may provoke this course of by opening the next URLs in your browser.

  • https://api.yourdomain.com/magic/modules/system/ping
  • https://magic.yourdomain.com

Solely when each of the above URLs returns success, and/or your Magic dashboard frontend, proceed with the remainder of this information. The above “docker-compose up -d” command will begin 5 docker containers.

  • nginx-proxy – The nGinx proxy that internally routes requests to both your backend or your frontend
  • letsencrypt – The container chargeable for retrieving and renewing LetsEncrypt SSL certificates for you
  • db – Your MySQL database, used to create the “magic” database that Magic internally relies upon upon
  • backend – The primary Magic backend container
  • frontend – The primary Magic dashboard frontend container

Now you can go to your frontend area and setup Magic, assuming you have pointed your DNS A information to the IP tackle of your digital server. Discover, to configure Magic login with “root/root” and do not change the database connection string, however select mysql as your database sort, and supply Magic with a root password, and simply observe the wizard to the top. This course of is just like the method you adopted as you configured Magic domestically in your development machine.

Discover – As you click on the login button, you need to present Magic together with your backend API URL. That is achieved by merely pasting in your backend API URL into the highest textbox and click on the tab key in your keyboard, at which level Magic will permit you to present your username and password to login to your Magic dashboard. Your preliminary username and password mixture earlier than you’ve configured Magic is “root/root”. You’ll have to change this password after you’ve logged in to begin the configuration technique of Magic.

Discover – The “appsettings.json” file can be mounted as an exterior file reference by Docker, and this file will comprise your Magic settings. Don’t delete this file because it’s essential for Magic to work. Nevertheless, watch out with the file, because it comprises your database connection strings, JWT secret, and different extremely delicate info. Don’t ship this file on electronic mail or share it with anyone until you completely belief the opposite occasion.

Discover – As a result of approach Docker mounts recordsdata your “appsettings.json” file in your present working folder won’t be modified as you save your configuration, leading to an error throughout the configuration course of, and/or as you save your configuration settings later. Should you expertise such errors, the place your configuration does not appear to replace when saving it, you need to manually restart your Docker photos out of your VPS utilizing the next to reload the brand new configuration settings.

Shell



docker-compose down
docker-compose up -d

That is sadly an issue with the best way Docker mounts recordsdata, and there’s actually nothing we are able to do to stop this on the time being.

Putting in a generated Angular frontend

After you have put in Magic you most likely need to take a look at its capabilities with reference to Low-Code and No-Code, which is definitely achieved by going to the SQL menu merchandise in your dashboard, click on the Load button, select “Sakila”, after which click on execute. This creates a database for you referred to as Sakila. For the file, you may after all additionally select any present and different create database MySQL script you have acquired as an alternative.

After you have executed the above you may return to your dashboard in Magic and select the “CRUD” menu merchandise. Then click on the little spiral arrow to refresh your server aspect cache, and as soon as the web page reloads select the database you simply created and click on “Crudify all tables”. Then select the “Frontend” tab on the high of your web page, give your app a reputation, select the “angular” template, and click on “Generate”. After a few seconds you need to be given a ZIP file as a obtain. Be sure to disable popup blockers on your area if you do not get the ZIP file and click on “Generate” as soon as extra.

After you have generated an Angular frontend, you may simply as simply set up this on the identical VPS. That is potential because the generated frontend additionally comprises a “docker-compose.yml” file. The best approach to do that is to add your generated ZIP file to your VPS container utilizing as an example out of your native development machine. But once more, use your VPS’ IP tackle right here.

Shell



scp foo.zip [email protected]:~

Then login to your VPS by way of your terminal, unzip the file and alter into the unzipped folder with one thing reminiscent of the next.

Shell



unzip foo.zip
cd foo

Should you get an error when executing the above unzip command, you may set up unzip in your VPS utilizing the next command and rerun the above instructions afterwards.

Shell



apt set up unzip

When you’ve unzipped your Angular frontend you can begin your Docker container utilizing the next command in your VPS from inside your unzipped Angular frontend folder.

Shell



docker-compose up -d

Discover – This assumes you’ve configured a DNS A file pointing to your digital machine with the URL of the place you need your frontend to be discovered, and that you just used this URL as you generated your frontend – Along with that you just generated your app in your Magic VPS occasion. The final half is essential since by default a generated Angular frontend will use the identical API URL because the URL you’re utilizing to generate your frontend.

At this level you need to have your frontend up operating on the sub-domain you selected as you generated your frontend. Now merely go to this URL in your browser, and after some 5 minutes of negotiating a brand new SSL certificates from LetsEncrypt your Angular app ought to work.

Discover – To login to your generated Angular frontend, use the identical username and password mixture that you just used when configuring Magic itself.

Securing your VPS

You would possibly need to set up a firewall in your Linux server to additional safe your set up. This may be executed by executing the next instructions so as of look.

Shell



apt set up ufw
ufw enable 80
ufw enable 443
ufw enable 22
ufw allow

The above will set up “Uncomplicated FireWall” in your server, for then to close off all ports besides port 80, 443 and 22. 22 is required to permit for SSH into your server. As well as, you’d most likely profit from ensuring your working system is up to date with the newest patches as launched by whomever is distributing your specific Linux set up.

DevOps

Should you’d relatively set up Magic in Azure’s DevOps pipelines, you may learn an article about this at Latest News that illustrates one strategy to getting Magic up running in an Azure DevOps environment.

Wrapping up

And that was it. The primary couple of instances you do that, you may most likely want greater than 5 minutes – Nevertheless, I’ve been capable of squeeze all the course of right down to a handful of minutes myself after some follow. And in reality, ignoring establishing your DNS A information, and buying a Droplet or VPS, all the course of is just copy and paste from the above recipe. Have enjoyable 🙂
